18.5 Inch LCD Panel 1366x768 Color TFT LCD Screen 250 cd/m2 for Industrial

Name: 185 Inch LCD Panel 1366x768 Color TFT LCD Screen 250 cdm2 for Industrial
Brand: AISON
Price: 1 USD

Brand Name : AISON

Model Number : DV185WHM-NM1

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 300k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : LCD Panel

Resolution : 1366x768

Outline dimension : 430.4 x254.6 x11.4 mm

Active area : 409.8x230.4mm

Interface : LVDS 30PIN

Viewing angle : 89/89/89/89

Brightness : 250 cd/m2

Display mode : Normally Black

Viewing Direction : ALL/IPS

Operating temperatures : 0 to 50 degree

Storage temperatures : -20 to 60 degree

Contact Now

BOE 18.5 inch DV185WHM-NM11366*768 IPS display color tft lcd display for Industrial

General Description

1.1 Introduction

DV185WHM-NM1 is a color active matrix TFT LCD module using amorphous siliconTFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

1.2 Features

1, LVDS Interface with 1 pixel / clock
2, High-speed response
3, Low power consumption
4, 6-bit (Hi-FRC) color depth, display 16. 7M colors
5, Incorporated edge type back-light (One Light Bar)
6, High luminance and contrast ratio, low reflection and normal viewing angle
7, DE (Data Enable) only
8, RoHSES compliant

General Data

Model Name	BOE 18.5 inch TFT Display
Resolution	1366x768
Model Size (WHT)	430.4 x254.6 x11.4 mm
Display Area (W*H)	409.8x230.4mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	250 cd/m2
Pin number	30 pin
Contrast Ratio	1000:1
Operating temperatures	0 to 50 degree
Storage temperatures	-20 to 60 degree

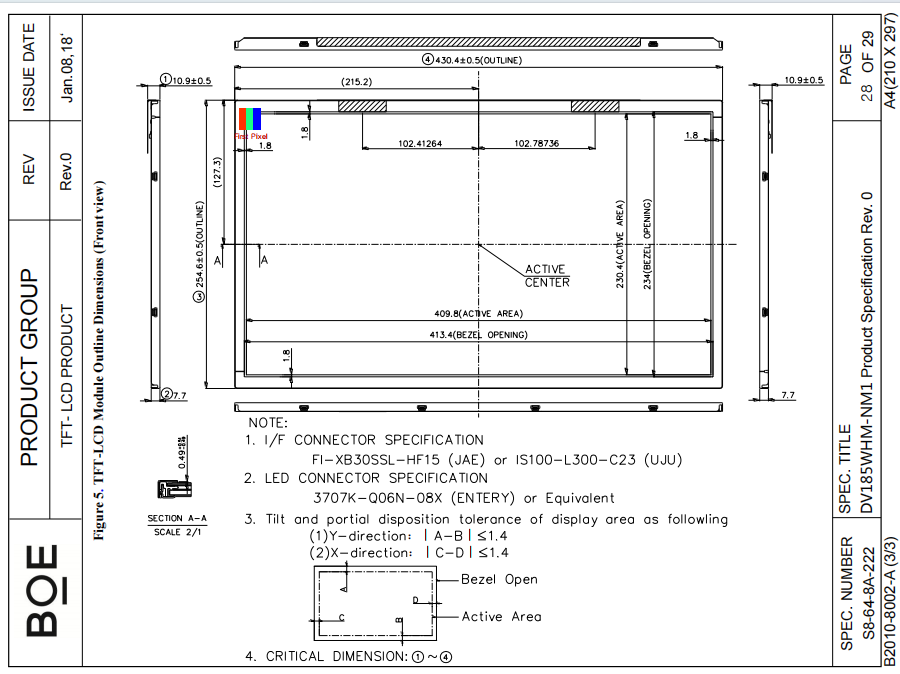

Drawing

18.5 Inch LCD Panel 1366x768 Color TFT LCD Screen 250 cd/m2 for Industrial

Product Details

18.5 Inch LCD Panel 1366x768 Color TFT LCD Screen 250 cd/m2 for Industrial

TFT Applications:

Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller
